Modify Location of 2D View Using Grip Points
To modify the location of a 2D View while maintaining its size, and the location and size of the design elements within it, click the square grip point in the centre of the View,

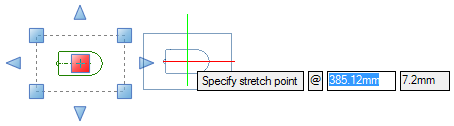

The user is prompted to
Specify stretch point
Move the cursor to specify a location for the view. A preview image displays.
Click to identify the new location for the centre point of the View.
