Modify Scale of Design Elements within 2D View Using Grip Points

DRAW User Guide

Create and Modify Views : Modify 2D View using Grip Points : Modify Scale of Design Elements within 2D View Using Grip Points

Modify Scale of Design Elements within 2D View Using Grip Points

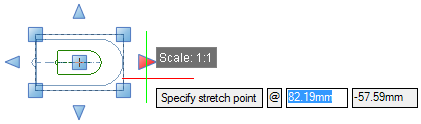

To modify the scale of design elements within the a 2D View, click a triangular grip point. The user is prompted to Specify stretch point

To increase the size of the design elements within the View, move the cursor away from the design elements. The further the cursor is moved, the larger the design elements become. To decrease the size of the design elements within the View, move the cursor towards the design elements. The further the cursor is moved, the smaller the design elements become. A preview image displays.

Click to identify the size of the design elements.
