Create Drawing Sheets and Support Elements : Create Drawing Sheets : Create Drawing Sheet from a Drawing Type and Template

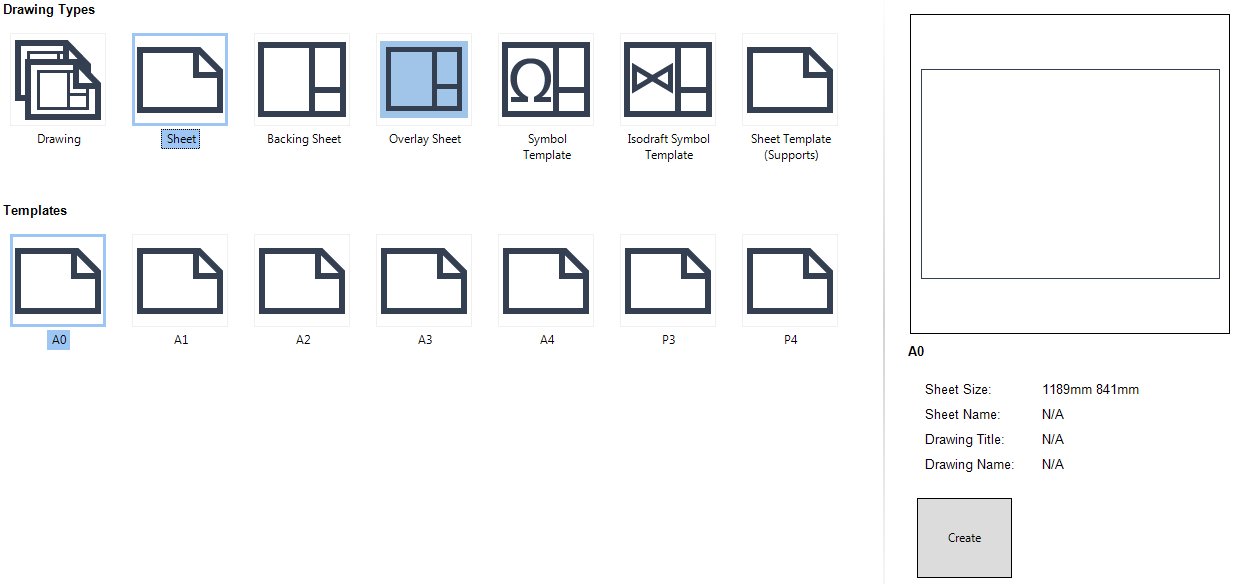

To create a drawing sheet from a drawing type and template, on the Home tab, in the Project group, click New, select Drawing Type from the drop-down list to display the available Drawing Types and Templates.
Select Sheet from the available Drawing Types.

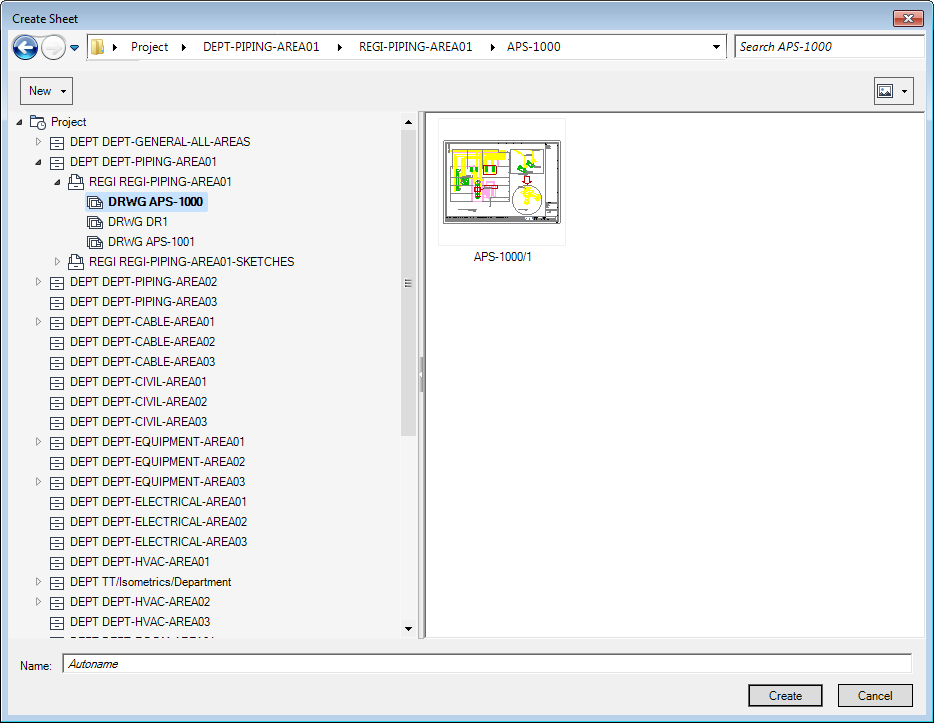

The Create Sheet window is very similar to the Hierarchy Browser window. Refer to Create Drawing Sheet from Hierarchy Browser or Open Window for further information.
The user can browse the hierarchy to select the drawing that the sheet is to be created in. Either input a name in the Name field, or leave it blank if the sheet is to be assigned a default name.
The sheet element is created and assigned a default name of the drawing name followed by /S and the next available number.
Certain attributes of a drawing, for example, its size and backing sheet (if set), are inherited as the default attributes of sheets created for that drawing. These can be changed if required, for example, with the Properties window. In turn, attributes set for a sheet are inherited as the default attributes of the views of that sheet.
