DRAW User Guide

Basic Operations : Open Sheet
To open a sheet, on the Project menu, click Open to display the Open window.
Alternatively, on the Home tab, in the Project group, click Open to display the Open window.

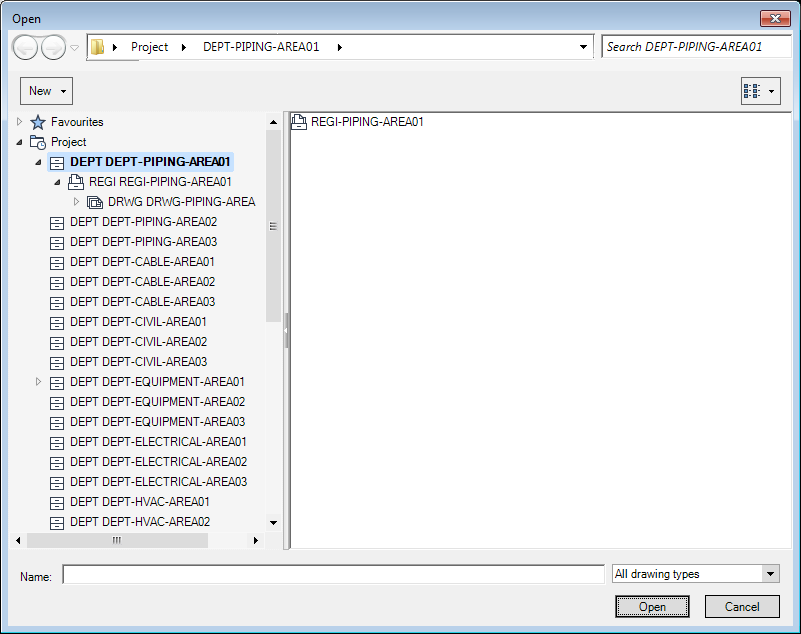

The Open window displays the database hierarchy. The functionality of the Open window is the same as the Hierarchy Browser window, except as described. Refer to Create Departments, Registries and Drawings with the Hierarchy Browser Window or Open Window for further information.
The Open window allows the user to browse for the required sheet.
Sheets are listed in the right-hand part of the Open window. Select the required sheet, or input a name in the Name field, and click Open.
Click Cancel to discard any changes and close the Open window.
