Options
: System Options
System Options

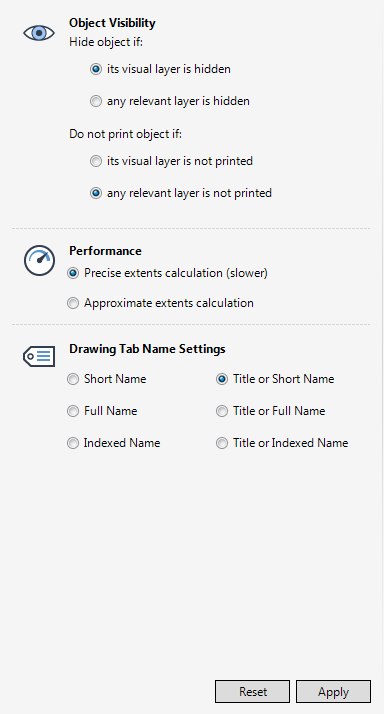

On the
Project
tab, click
Options
, click
System
to display the
System
Options
.
Object Visibility
Object Visibility is used to specify the algorithm that determines the visibility of objects inserted in blocks.
The user can independently set algorithms to be used when the application tests if an object's layer is on, or if it should be visible in the printout.
Performance
Performance is used to set how the extents of a 3D model or its parts are determined by the application.
For complicated drawings, exact extents calculations can be time-consuming and can therefore degrade the performance of the Zoom Extents operations. If performance is an issue, it is recommended that approximate calculations are used.
Additionally, whether or not entities should be autoregenerated when the zoom level changes can be specified. By default this feature is on, but it can be turned off to improve performance. If the feature is off, the user can force regeneration with the REGEN command.
Drawing Tab Name Settings
The Drawing Tab Name Settings radio buttons allow the user to select the default name for a drawing tab. Settings are remembered between sessions and changes are made as soon as they are applied.
Short Name
Select the radio button to display the short name.
Full Name
Select the radio button to display the full evaluated name.
Indexed Name
Select the radio button to display a name built from the owner name, ref number and drawing name or special system prefix with record number.
Title or Short Name
Select the radio button to display the title or, if unset, the short name.
Title or Full Name
Select the radio button to display the title or, if unset, the full evaluated name.
Title or Indexed Name
Select the radio button to display the title or, if unset, the indexed name
