DRAW User Guide
User Interface : Properties
Properties
To display the properties of objects, on the Home tab, in the Display group, click Property Grid to display the Properties window.
If no object is selected, the properties of the drawing sheet or template displays.
If a single object is selected, the object type displays in the drop-down list at the top of the window, and the window displays the object’s properties.

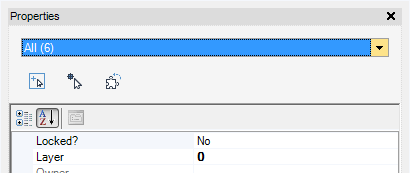

If multiple objects are selected, the drop-down list at the top of the window initially displays All (number of selected objects) and the window displays only properties common to the selected objects.

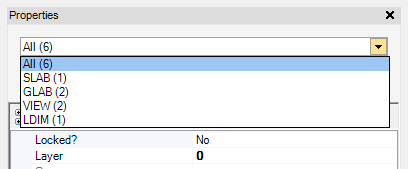

The drop-down list displays each type of object selected. If more than one object type is currently selected, the number of each object type displays in brackets.

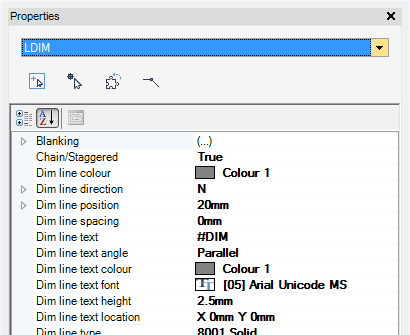

If an object type is selected from the drop-down list, the properties associated with the object type display, or common properties if more than one of that object type is currently selected.
The user can initiate a new selection, specify a single or multiple selection and set all properties to the default values.
Specify object selection mode
Indicates multiple object selection mode. Every object clicked on is added to the list of selected objects.
Specify object selection mode
Indicates single object selection mode. Only one object can be selected at a time. Selecting an object de-selects any previously selected objects.
Initiate new object selection
Click to de-select all currently selected objects and initiate another selection.
Set all of the visual properties of the selected objects to default
Click to set all the visual properties of the selected objects to their default values.
Show the vertex editor for the selected object.
Click to display the Vertex Editor window. Refer to Vertex Editor for further information.
The user can define the view for the properties list.
Categorized
Click to list the properties by category.
Alphabetical
Click to list the properties alphabetically.
The list of properties allows the user to modify the properties of an object. For example, input a dimensional value in the Width field to modify the width of an object. Select a colour from the Fill Colour drop-down list to modify the fill of an object.
