Auto

DRAW User Guide

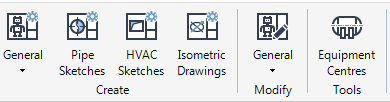

Create Group
General	Click to display a drop-down list with the following options:
Drawing	Allows the user to create a general ADP drawing. Refer to Create General ADP Drawings for further information.
Sheet	Allows the user to create a general ADP sheet. Refer to Create General ADP Sheets for further information.
View	Allows the user to create a general ADP view. Refer to Create General ADP Views for further information.
Pipe Sketches	Allows the user to create a new pipe sketch. Refer to Create Pipe Sketches for further information.
HVAC Sketches	Allows the user to create a new HVAC sketch. Refer to Create HVAC Sketches for further information.
Isometric Drawings	Isometric ADP defaults are defined by the administrator. Refer to Defaults for further information.
Modify Group
General	Click to display a drop-down list with the following options:
Drawing	Allows the user to modify a general ADP drawing. Refer to Modify General ADP Drawings for further details.
Sheet	Allows the user to modify a general ADP sheet. Refer to Modify General ADP Sheets for further details.
View	Allows the user to modify a general ADP view. Refer to Modify General ADP View for further details.
Equipment Centres Group
Equipment Centres	Allows the user to define the setup of equipment centrelines on a general ADP view. Refer to Equipment Centrelines for further details.
Tools Group

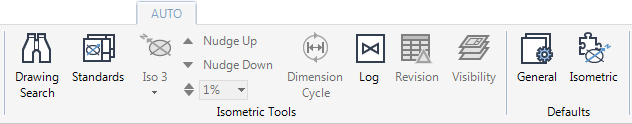

Drawing Search	Allows the user to search for Isometric ADP drawings. Refer to Search for Isometric ADP Drawings for further information.
Standards	Allows the user to add HVAC standard drawings to the Isometric ADP drawings. Refer to ISOADP Standards for further information.
Isometric Direction	Allows the user to modify the view direction of an Isometric ADP drawing. Refer to Look Direction for further information.
Nudge Up	Allows the user to increase the view scale of the Isometric ADP drawing. Refer to Nudge the View Scale for further information.
Nudge Down	Allows the user to decrease the view scale of the Isometric ADP drawing. Refer to Nudge the View Scale for further information.
Nudge Factor	Allows the user to define the scale used to nudge the view scale. Refer to Nudge the View Scale for further information.
Dimension Cycle	Allows the user to define the display style of dimensions on the Isometric ADP drawing. Refer to Dimension Style for further information.
Log	Allows the user to view the log file for the generated Isometric ADP drawing. Refer to Log File for further information.
Revision	Allows the user to define the revision status of the Isometric ADP drawing. Refer to Revision Details for further information.
Visibility	Allows the user to specify the visible layers for the Isometric ADP drawing. Refer to Layer Visibility for further information.
Defaults Group
General	The default files used for General ADP production are defined by the administrator. Refer to Set ADP Defaults for further information.
Isometric	The default files used for Isometric ADP production are defined by the administrator. Refer to Defaults for further information.
