Update

DRAW User Guide

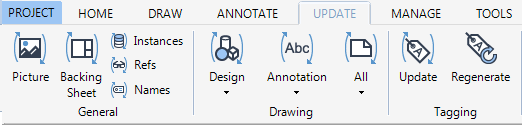

User Interface : Tabs : Update

Allows the user to update picture files. Refer to Picture Files for further information.

Allows the user to update backing sheets with any database changes. Refer to Backing Sheets for further information.

Allows the user to update template instancing. Refer to Update Template Instances for further information.

Allows the user to update cross-database reference attributes. Refer to Cross-Database Reference Attributes for further information.

Allows the user to update cross-database name attributes. Refer to Cross-Database Name Attributes for further information.

Click to display a drop-down list with the following options:

Select from the drop-down list to manually update the sheet with any design changes from the database. Refer to Drawing Elements for further details.

Select from the drop-down list to manually update the current owner with any design changes from the database.

Note:

The changes are applied automatically if

is set on the Status Bar.

Click to display a drop-down list with the following options:

Select from the drop-down list to manually update the sheet with any annotation changes from the database. Refer to Drawing Elements for further details.

Select from the drop-down list to manually update the current owner with any annotation changes from the database.

Click to display a drop-down list with the following options:

Select from the drop-down list to manually update the sheet with any design and annotation changes from the database. Refer to Drawing Elements for further details.

Select from the drop-down list to manually update the current owner with any design and annotation changes from the database.

Allows the user to update automatically generated labels with any database changes. Refer to Update and Regenerate Tagging for further details.

Tagging Regenerate

Allows the user to regenerate automatically generated labels with any database changes. Refer to Update and Regenerate Tagging for further details.
