DRAW
User Guide
User Interface
:
Tabs
: Draw
Draw

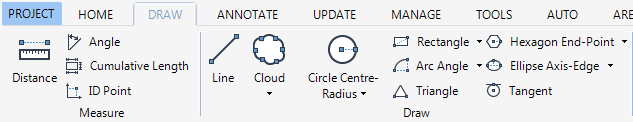

Measure Group
Distance
Allows the user to measure the distance between two points. Refer to
Measure Distance between two Points
for further information.
Angle
Allows the user to measure the angle between two points. Refer to
Measure Angle between two Points
for further information.
Cumulative Length
Allows the user to measure the cumulative lengths of multiple objects. Refer to
Measure Cumulative Lengths of Objects
for further information.
ID Point
Allows the user to display the coordinates of a point. Refer to
Display Point Coordinates
for further information.
Draw Group
Line
Allows the user to draw lines. Refer to
Draw Lines
for further information.
Cloud
Allows the user to draw clouds and outlines. Refer to
Draw Clouds and Outlines
for further information.
Click to display a drop-down list with the following options:
•
Cloud
•
Outline
Circle Centre-Radius
Click to display a drop-down list with the following options:
Circle Centre-Radius
Allows the user to draw circles by specifying their radii. Refer to
Draw Circle with Specified Radius
for further information.
Circle Two-Points
Allows the user to draw circles by specifying their diameters Refer to
Draw Circle with Two Specified Points
for further information.
Circle Centre- Diameter
Allows the user to draw circles by specifying their centre points and diameters. Refer to
Draw Circle with Specified Diameter
for further information.
Rectangle
Click to display a drop-down list with the following options:
Rectangle
Allows the user to draw rectangles. Refer to
Draw Rectangles and Diamonds
for further information.
Diamond
Allows the user to draw diamonds. Refer to
Draw Rectangles and Diamonds
for further information.
Arc Angle
Click to display a drop-down list with the following options:
Arc Angle
Allows the user to draw arcs by specifying their centre points, start points and sweep angles. Refer to
Draw Arc with Specified Centre, End and Angle
for further information.
Arc Three-Points
Allows the user to draw arcs by specifying their start points, end points and through points. Refer to
Draw Arc with Specified Start, End and Through Points
for further information.
Triangle
Allows the user to draw equilateral triangles. Refer to
Draw Equilateral Triangles
for further information.
Hexagon End-Point
Click to display a drop-down list with the following options:
Hexagon End-Point
Allows the user to draw hexagons by specifying their centre to point radius. Refer to
Draw Hexagon with Specified Centre to Point Radius
for further information.
Hexagon Two-Points
Allows the user to draw hexagons by specifying their point to point diameters. Refer to
Draw Hexagon with Specified Point to Point Diameter
for further information.
Hexagon Edge
Allows the user to draw hexagons by specifying their centre to side radius. Refer to
Draw Hexagon with Specified Centre to Side Radius
for further information.
Axis - End
Click to display a drop-down list with the following options:
Ellipse Axis-Edge
Allows the user to draw ellipses by specifying the length of their axes. Refer to
Draw Ellipse with Specified Length of Axes
for further information.
Ellipse Centre
Allows the user to draw ellipses by specifying the radius of the first axis and the length of the second. Refer to
Draw Ellipse with Specified Radius of First Axis and Length of Second
for further information.
Elliptical Arc
Allows the user to draw elliptical arcs. Refer to
Draw Elliptical Arc with Specified Axes, Start and End Angle
for further information.
Tangent
Allows the user to draw tangent lines. Refer to
Draw Tangent Lines
for further information.

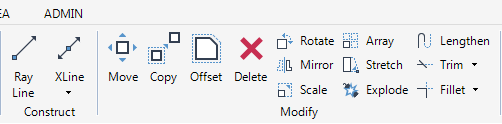

Construct Group
Ray Line
Allows the user to draw ray lines. Refer to
Add Ray Lines
for further information.
XLine
Click to display a drop-down list with the following options:
XLine
Allows the user to draw xlines by selecting two points. Refer to
Add XLines with Two Selected Points
for further information.
Horizontal
Allows the user to draw horizontal xlines. Refer to
Add Horizontal XLines
for further information.
Vertical
Allows the user to draw vertical xlines. Refer to
Add Vertical XLines
for further information.
Angle
Allows the user to draw xlines at a specified angle. Refer to
Add XLines with a Specified Angle
for further information.
Bisect
Allows the user to draw bisecting xlines. Refer to
Add Bisect XLines
for further information.
Modify Group
Move
Allows the user to move objects. Refer to
Move Objects using Move Command
for further information.
Copy
Allows the user to copy objects. Refer to
Copy Objects using Copy Command
for further information.
Offset
Allows the user to offset objects. Refer to
Offset Objects
for further information.
Delete
Allows the user to delete objects. Refer to
Delete Objects
for further information.
Rotate
Allows the user to rotate objects. Refer to
Rotate Objects
for further information.
Mirror
Allows the user to mirror objects. Refer to
Mirror Objects
for further information.
Scale
Allows the user to scale objects. Refer to
Scale Objects
for further information.
Array
Allows the user to create arrays of objects. Refer to
Create Arrays of Objects
for further information.
Stretch
Allows the user to stretch objects. Refer to
Stretch Objects
for further information.
Explode
Allows the user to explode objects. Refer to
Explode Objects
for further information.
Lengthen
Allows the user to change the length of objects. Refer to
Change Length of Objects
for further information.
Trim
Click to display a drop-down list with the following options:
Trim
Allows the user to trim objects. Refer to
Trim Objects
for further information.
Extend
Allows the user to extend objects. Refer to
Extend Objects
for further information.
Fillet
Click to display a drop-down list with the following options:
Fillet
Allows the user to fillet objects with a radius of 0 degrees. Refer to
Fillet Objects
for further information.
FilletR
Allows the user to fillet objects with a user-selected fillet arc radius. Refer to
Fillet Objects
for further information.
Chamfer
Allows the user to chamfer objects. Refer to
Chamfer Objects
for further information.
