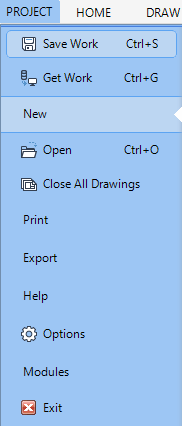

Click to save changes made to data in the DRAW module. The facility is also available on the Quick Access Toolbar by default.

Click to discard any changes made to the drawing data since the last Save Work was executed by the user. The facility is also available on the Quick Access Toolbar by default.

Allows the user to create new drawing sheets, backing sheets, symbol templates and overlay sheets. Refer to Create Drawing Sheet from a Drawing Type and Template for further information.

Allows the user to open drawing sheets, backing sheets, symbol templates and overlay sheets. Refer to Open Sheet for further information.

Click to close all currently open drawing sheets. Refer to Close Drawing for further information.

Allows the user to print drawing sheets. Refer to Print Sheets for further information.

Allows the user to export drawings sheets to other file formats. Refer to Output Facilities for further information.

Click to open the support and information page, which displays general information about the product (for example, the software version). The user can access Online Help, facilities to contact AVEVA and check for software updates. Refer to On-Line Help for further information.

Allows the user to configure the DRAW module. Refer to Options and Setup for further information.
