DRAW User Guide
Isometric Automatic Drawing Production : Modify Drawings : Layer Visibility
Layer Visibility
When first created, all layers in the Isometric drawing are visible, the user can modify individual layer visibility.

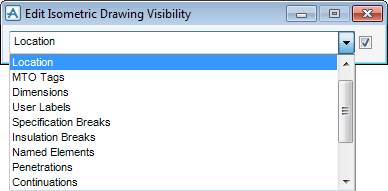

On the Auto tab, in the Isometric Tools group, click Visibility, to display the Edit Isometric Drawing Visibility window.
Select the relevant layer from the drop-down menu. Select the check box to make the layer visible, deselect the check box to make the layer invisible.
The user can modify visibility for the following layers:
•
Keyplan
•
Location
•
MTO Tags
•
Dimensions
•
User Labels
•
Specification Breaks
•
Named Elements
•
Penetrations
•
Continuations
•
ISO Origin
•
Symbols
•
Elevations
•
MTO Table
