Search for Isometric ADP Drawings

DRAW User Guide

Isometric Automatic Drawing Production : Modify Drawings : Search for Isometric ADP Drawings

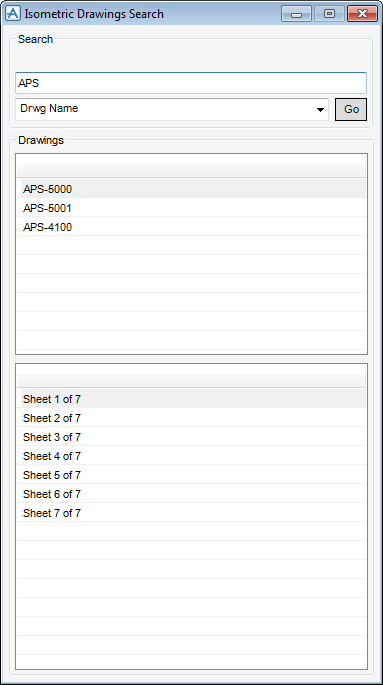

To search for existing Isometric ADP Drawings, on the Auto tab, in the Isometric Tools group, click Drawing Search to display the Isometric Drawings Search window.

The Search part of the Isometric Drawings Search window allows the user to define the search criteria for the drawing search.

Input a value in the Search field and select a filter from the Search drop-down list to define the search criteria. For example, Input APS in the field and select Drwg Name from the drop-down list to display all drawings that contain APS in the drawing name.


All Dwgs	Select from the drop-down list to display all drawings.
Drwg Name	Select from the drop-down list to display all drawings that match the name input by the user.
Drwg Number	Select from the drop-down list to display all drawings that match the drawing number input by the user.
Drwg Date	Select from the drop-down list to display all drawings that match the date input by the user.
Drwg Author	Select from the drop-down list to display all drawings that match the author name input by the user.
Line Number	Select from the drop-down list to display all drawings that match the line number input by the user.
Rev Number	Select from the drop-down list to display all drawings that match the revision number input by the user.
Rev Desc	Select from the drop-down list to display all drawings that match the revision description input by the user.
Rev Date	Select from the drop-down list to display all drawings that match the revision date input by the user.
Status	Select from the drop-down list to display all drawings that match the status input by the user.

Click Go to populate the Drawings part of the Isometric Drawings Search window with the search results.

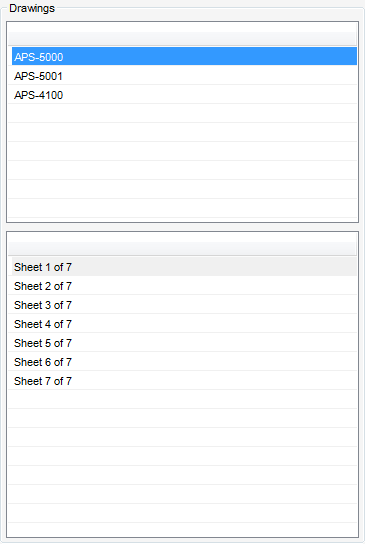

The Drawings part of the Isometric Drawings Search window displays the results from the drawings search. The user can modify the Drawings list display. Functionality is also available to open, print and export drawing sheets.

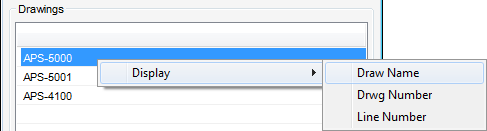

To modify the display of the Drawings list, right-click the currently selected drawing to display a drop-down menu.


Display
Draw Name	Select from the drop-down menu to display the Drawings list by name.
Drwg Number	Select from the drop-down menu to display the Drawings list by number.
Line Number	Select from the drop-down menu to display the Drawings list by line number.

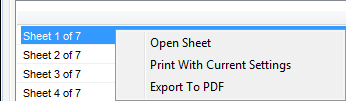

To open, print or export drawing sheets to PDF format, right-click the currently selected sheet to display a drop-down menu.


Open Sheet	Select from the drop-down menu to display the currently selected sheet in the view.
Print With Current Settings	Select from the drop-down menu to print the currently selected sheet. The sheet is printed using the current printer settings. Refer to Print Sheets for further information.
Export to PDF	Select from the drop-down menu to export the currently selected sheet to a PDF format. The sheet is exported using the current PDF export settings. Refer to Export to PDF for further information.
