Isometric Automatic Drawing Production
:
Drawing Content
: Isometric Detail

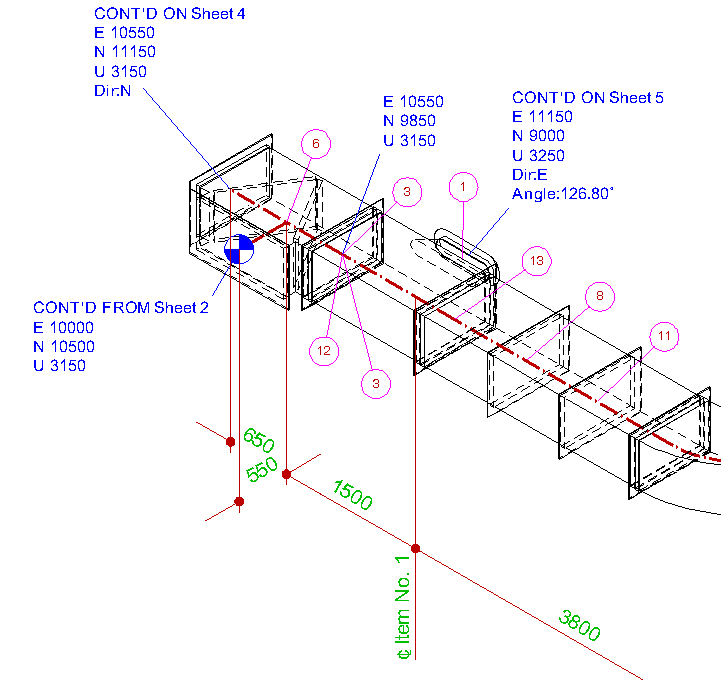

Isometric Detail
The drawing contains a single graphical view of the Fabrication Spool, which includes a variety of annotations and can, if required, display the following internal details:
•
Design components are tagged to match the entries in the Material Parts Table.
•
The centreline is dimensioned with either a full or overall dimension type dependant on the default choice, this can be modified by the user. Refer to
Modify Drawings
for further information.
•
Labels are provided to indicate continuation to other sheets in this drawing or to other parts of the 3D model system (as long as the connection data is available).
•
Certain elements such as Tees, Bends and Elbows are labelled to indicate their coordinate position, while BRCO elements are labelled to provide connection data.
•
The start position of the Spool is marked as the origin, this relates to the nearest grid-line and displays on the Isometric ADP Keyplan.
