General Automatic Drawing Production : Modify General ADP Sheets
ADP sheets are modified using the Modify General ADP Sheet window. By default, the Modify General ADP Sheet window displays when an ADP sheet is created (refer to Create General ADP Sheets for further information).
Alternatively, the user can modify an existing sheet. To modify the currently selected sheet, on the Auto tab, in the Modify group, click General, select Sheet from the drop-down list to display the Modify General ADP Sheet window.

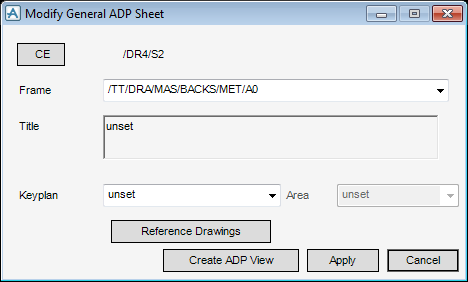

The Modify General ADP Sheet window allows the user to input a title and date for the sheet, and provides access to create an ADP view.
|
Select a keyplan from the drop-down list to define the limits of the drawing. The user can define the Area of the keyplan to use as the drawing limits.
Select unset if a keyplan is not required to define the limits of the drawing.
|
|
|

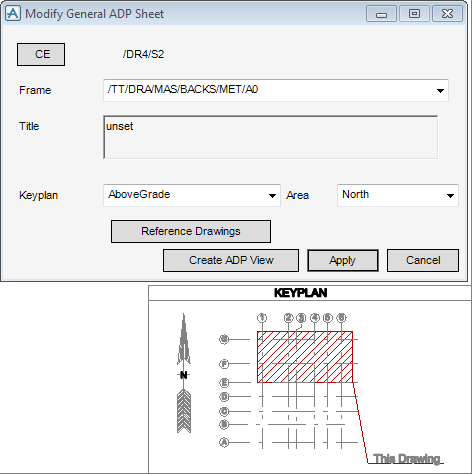

For example, select All from the drop-down list to use the whole keyplan as the limits for the drawing.
|
|
Click Apply to modify the sheet, the keyplan is highlighted red on the appropriate area of the sheet.

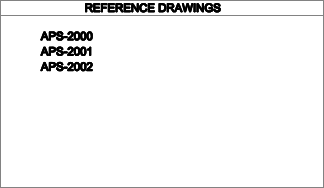

To define an area of the sheet to be used as a list of referenced drawings, on the Modify General ADP Sheet window, click Reference Drawings to display the Reference Drawings window.
Click OK to apply the drawing references or Cancel to discard any changes and close the Reference Drawings window. The user is returned to the Modify General ADP Sheet window.
