DRAW User Guide

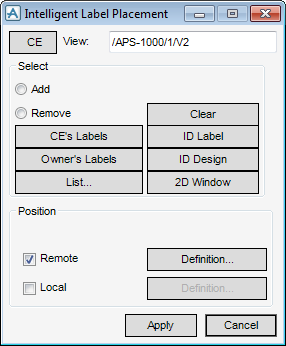

CE	Click to identify the currently selected view as the working element.
Select
Add	Select the radio button to add labels to the drawing.
Remove	Select the radio button to remove labels from the drawing.
CE's Labels	Click to select an individual label or all labels in the current layer or view.
Owner's Labels	Click to select all labels for the owner of the CE.
List	Click to display the Select List window. Refer to Select List for further information.
Clear	Click to clear the current selection.
ID Label	Click to select a series of labels. The user is prompted to Select Element
ID Design	Click to select a series of labels attached to the identified design element. The user is prompted to Select Element
2D Window	Allows the user to select all the labels within a cursor defined window. Click to display the Point Construction Option Form window. The user is prompted to Input 2 point(s) on a sheet
Position
Remote	Allows the user to place labels around the view border. Select the check box and click Definition to display the Remote Label Placement window. Refer to Remote Label Placement for further information.
Local	Allows the user to place labels around significant design elements. Select the check box and click Definition to display the Local Label Placement window. Refer to Local Label Placement for further information.

No list defined	Select from the drop-down list to define a list for label placement or removal.
Update	Click to use the selected list to specify items for label replacement or removal.
Lists	Click to display the Lists/Collections window. Refer to Lists/Collections for further information.

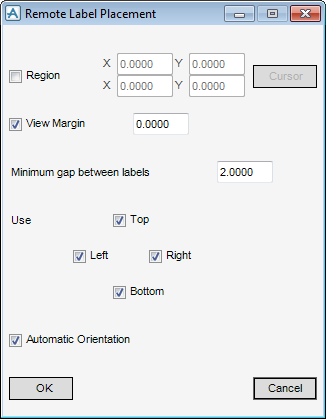

Region	Select the check box to define a rectangular region that encloses the labels. Input the coordinates of the region in the X and Y fields.
Cursor	Click to define the rectangular region that encloses the labels using a cursor pick on the drawing canvas. The Point Construction Option Form window displays. The user is prompted to Input 2 point(s) on a sheet
View Margin	Select the check box to define the label margin for the current view boundary. Input the value of the margin in the field.
Minimum gap between labels	Input a value in the field to define the minimum gap between labels.
Use
Top	By default all four sides on the view border are used to spread labels. Deselect the relevant check boxes to omit a side.
Left
Right
Bottom
Automatic Orientation	Select the check box to allow automatic rotation of labels at the top and bottom sides of the view boundary

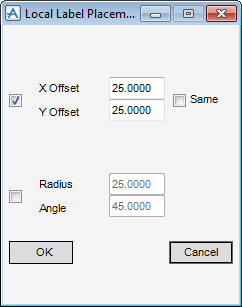

X Offset	Select the check box to spread offset labels from their attachment points with defined X offset and Y offset values. Input offset values in the X offset and Y offset fields.
Y Offset
Same	Select the check box to use the same value for the X offset and Y offset. Note: Input a value in either the X offset or Y offset field and press Enter or click OK. The remaining field automatically updates with the entered value. Deselect the check box to use different values for the X offset and Y offset.
Radius	Select the check box to spread offset labels from their attachment points with defined radius and angle values. Input a value in the Radius field and a value in the Angle field.
Angle
