Add Annotation : Pipe End Labels : Manually Identified Pipe End Labels
To manually identify the pipe ends to add labels to, on the Annotate tab, in the Annotate group, click Pipe End Labels, select Identified from the drop-down list.
|
Note:
|
The Identified option only becomes active after the VIEW has been made the Current Owner using the Active Properties window. Refer to Active Properties for further information.
|

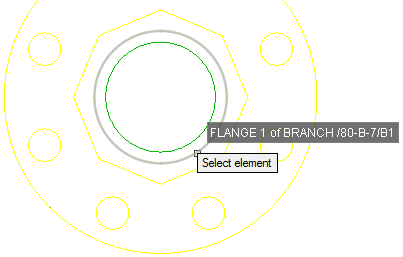

The user is prompted to Select Element
The user is then prompted to Select Element
