Add Tables to Drawings
To add a table to a drawing, on the Annotate tab, in the Insert group, click Table.
The user is prompted to Specify start point
Input values in the dimension fields and press Enter or click to identify the first corner of the table

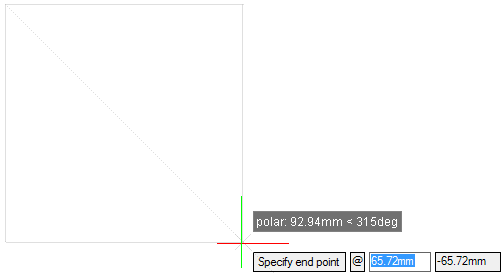

The user is then prompted to Specify end point
Input values in the dimension fields and press Enter or click to identify the opposite corner of the table. The outline of the table is drawn.
The user is then prompted to Specify number of columns <10>
Input the required number of columns at the prompt and press Enter.

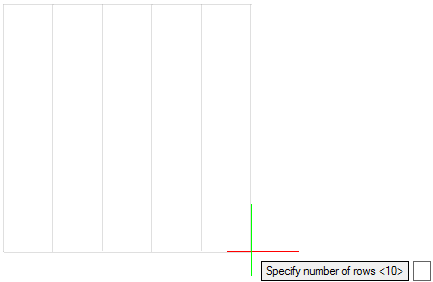

The user is then prompted to Specify the number or rows <10>
Input the required number of rows at the prompt and press Enter.
The table is then added to the drawing.
The new TEXP element displays in the Draw Explorer.
