Define Required Layers of Overlay Elements

DRAW User Guide

Add Annotation : Add Overlays to Drawings : Define Required Layers of Overlay Elements

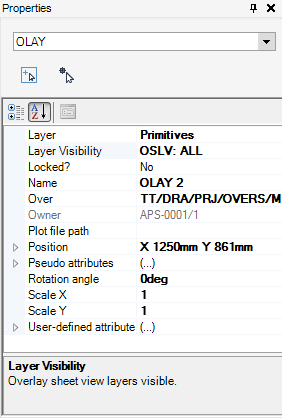

The Properties window allows the user to define the visible layers of the currently selected overlay (OLAY) element.

On the Home tab, in the Display group, click Property Grid to display the Properties window. Refer to Properties for further information.

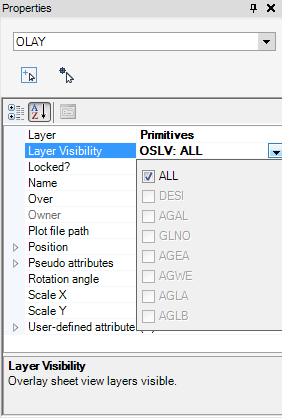

Select the Layer Visibility drop-down list to display the available OLAY layers.

Select the required check boxes to define the visible layers.

The ALL and DESI check boxes display by default, all other check boxes are added dynamically. If the user selects the ALL check box, all other check boxes in the drop-down list become inactive.
