DRAW
User Guide
Add Annotation : Add Images to Drawings
To add an image to a drawing, on the Annotate group, in the Insert tab, click Image to display the Open window. The user can browse for and select the required image, click Open.

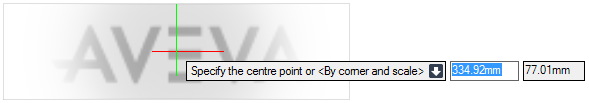

The user is prompted to Specify the centre point or <By corner and scale>
Input values in the dimension fields and press Enter or click to identify the location for the centre of the image.
The user is then prompted to enter the Scale <1>
Input a value in the field and press Enter to define the scale factor. Alternatively the user can move the cursor away from the insertion point to increase the size of the image or move the cursor closer to the insertion point to decrease the size of the image. Click to define the scale factor.
The user is then prompted to enter the Rotation angle <0deg>
Input an angular value in the field and press Enter to define the rotation angle. Alternatively, the user can move the cursor around the centre of the image to visually select the required angle. A ghosted preview of the image rotates to reflect the angle. Click to define the rotation angle.
Throughout the process of adding the image to a drawing the user can press ESC to cancel the command. Additional functionality is also available.
 |
|
|
Press the down arrow key and select By corner and scale to insert an image with a specified corner point.
The user is prompted to Specify the left down corner.
Input values in the dimension fields and press Enter or click to identify the location for the bottom-left of the image.
|
|
