Summary of Objects, Members and Methods : Object Type Details : RADIALGRID Object
RADIALGRID Object
RADIAL GRID Object Members

Name
Type
Purpose
Position
POSITION Get/Set
Origin of the grid.
Orientation
ORIENTATION Get/Set
Orientation of the grid.
Radii
REAL ARRAY
Get/Set
Radii of the grid.
Angles
REAL ARRAY
Get/Set
Angular spacing, from X axes (zero).
Figure 2:60.
RADIALGRID Object Members
RADIALGRID Object Definition Methods

Name
Result
Purpose
Radialgrid( POSITION, ORIENTATION, ARRAY, ARRAY)
RADIALGRID
Creates a grid with the given position and orientation, and the angles and radii specified in the arrays.
Table 2: 104.
RADIALGRID Object Definition Methods
Figure 2:61.

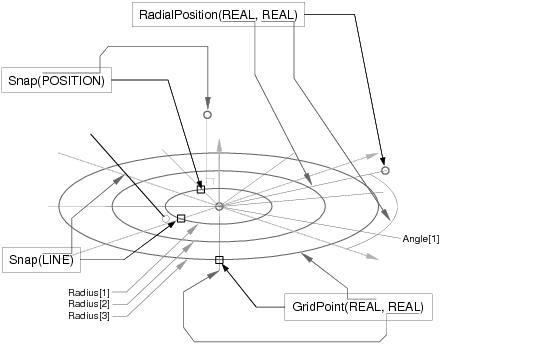

RADIALGRID Object definition (a)
Figure 2:62.
RADIALGRID Object Definition (b)
