Check Stress Group for Errors : Node Errors : Node Errors ‑ Weight
If the weight of a component such as an instrument is not set, then an error in the Node Errors tab is displayed:

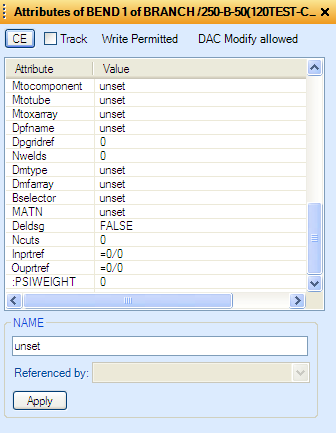

To set the PSIWEIGHT UDA, modify the component’s attributes by selecting the component from the Model Explorer hierarchy, then click Modify > Attributes from the main menu. The Attributes window is displayed.
