Specific Hierarchy

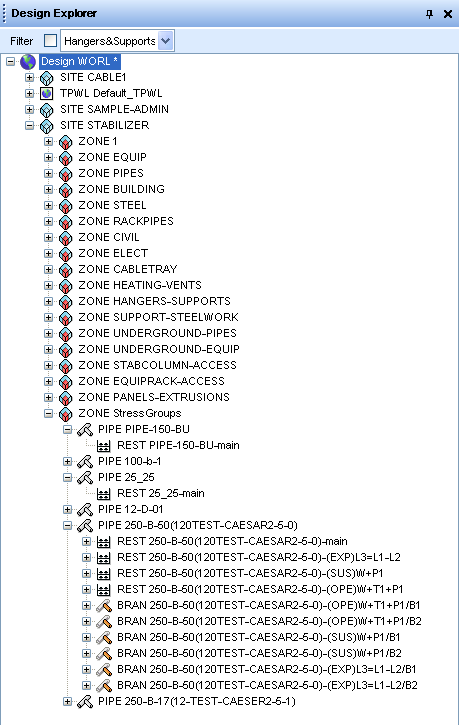

The specific hierarchy for use within the Pipe Stress Interface includes the following database elements:
Stress Group
The Stress Group (ZONE) elements are administrative and can own a number of AVEVA E3D™ pipes or branches.
Pipe (PIPE)
The Pipe (PIPE) elements are administrative and can own a number of branches with a common default pipe specification and have any number of ends.
Branch (BRANCH)
The Branch (BRANCH) is the key element for all routed piping in AVEVA E3D™ and represents a two-ended element whose route is defined by its head, tail and sequence of components between.
Restraint (REST)
The restraint (REST) element is an administrative element which can own HANGER elements in convenient groupings.
