Spec Queries
Spec Queries list the selectors from pipe specifications that can be used in Selector Rules elsewhere in the configuration file. The example here shows a single query for STYP as provided in the out-of-the-box configuration file. Any selector used in the file must be included in the Spec Queries section, so that it can be recognised as allowable syntax by Intellisense. If Integrator reports syntax errors in the configuration file, it may be that there are Selector rules defined using selectors that have not been entered in the Spec Queries section.

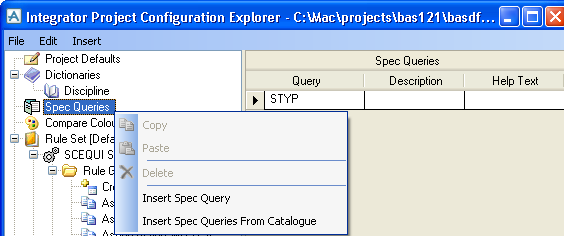

Use the right click menu to insert individual spec queries, or to insert spec queries from catalogue. This latter option will generate a list of all the selectors used in pipe specifications in the project, and is intended as an occasional activity for project administrators. Selectors are project specific although some such as STYP are very common. Note that you do not need to insert PBOR selectors (PBOR0, PBOR1, PBOR2, etc.) as Integrator uses PBOR selectors automatically when needed.
Figure 6:8.
Spec Queries
