Project Defaults
Project Defaults have a name and a single setting. If any are omitted the standard default values described below will be used.

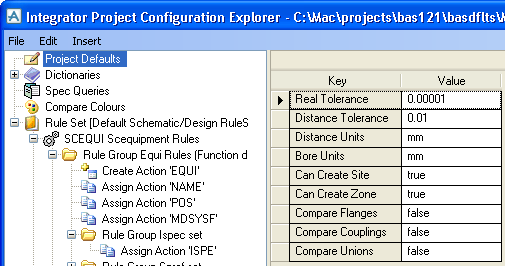

Figure 6:6.
Project Defaults
Real Tolerance
This is the value that will be used to compare real number attributes. Two attribute values within this tolerance will be deemed to be equal. If no Real Tolerance value is specified the built-in default is 0.00001.
Distance Tolerance
This is the value that will be used to compare distance attributes. Two attribute values within this tolerance are deemed to be equal. If no Distance Tolerance value is specified the built-in default is 0.01.
Distance and Bore Units
These determine which units will be used for distance and bore values embedded within rules. The options are mm or inch.
Can Create Site
This determines whether a SITE may be automatically created during Build operations if no suitable SITE already exists (as specified by the project build rules). The built-in default setting is false.
Can Create Zone
This determines whether a ZONE may be automatically created during Build operations if no suitable ZONE already exists (as specified by the project build rules). The built-in default setting is false.
Compare Flanges, Couplings and Unions
By default, flanges, couplings and unions are treated as insignificant for compare. If the diagrams show these items then they can be set true so that they will be treated as significant for compare.
