Open a New or Existing Configuration File

Schematic 3D Integrator User Guide

How to Configure Build Rules : Modifying the Project Configuration File : Open a New or Existing Configuration File

In the File menu select New to create a new configuration, or select Open to open an existing configuration file.

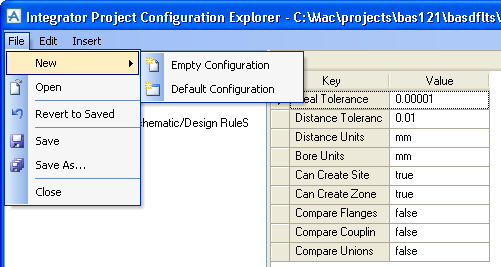

Figure 6:1.

Open a Project Configuration File

There are two options for new configuration files.

•

An Empty Configuration file will provide some simple default settings but will contain no rules for building and comparing objects.

•

A Default Configuration will provide a copy of the configuration file containing a complete set of example rules that can be used out of the box but are available for customisation.

To open an existing configuration file select the ProjectConfiguration.xml file in the Open File dialogue. By default this dialogue will open in the appropriate folder, defined as the ModelManagement folder under the folder indicated by the project defaults environment variable, e.g. for the TTP project:

%ttpdflts%\ModelManagement\ProjectConfiguration.xml

Integrator always uses this folder and file combination to read its configuration settings. You can save the settings in another file, but if you want those settings to be used, you must copy that file back to the default name and location.

Note:

If you have moved away from the default folder, use the project defaults environment variable to get quickly to the appropriate folder. For example, in the Open File dialogue, for the TTP project, enter %ttpdflts%\ModelManagement in the Filename field.

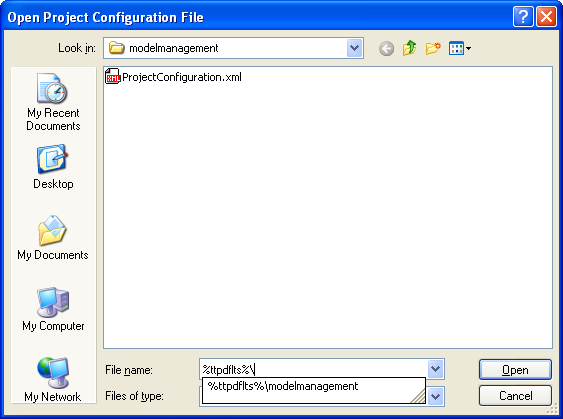

Figure 6:2.

Open Project Configuration File Dialogue
