The Connection Details option will be available on a schematic equipment that is linked to a 3D equipment, and on a 3D equipment that is linked to a schematic equipment.

Select Main Table Context Menu > Connection Details.

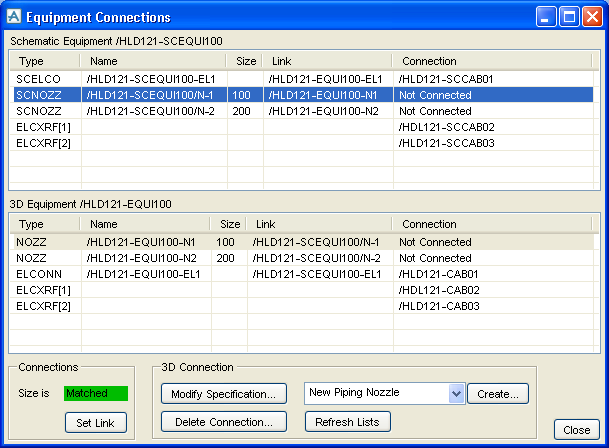

The Equipment Connections form will be displayed.

The Equipment Connections form lists the nozzles and electrical connection on the schematic equipment, and the 3D equipment. The Link columns show which connections are linked between the schematic and 3D model. The form lists piping and HVAC nozzles and electrical connections. It also lists connections that are direct to the equipment objects using the ECRFA and ELCXRF reference array attributes.

To change the specification reference of a nozzle, select the nozzle in the 3D Equipment list, then click on the Modify Specification button. This will show either the Pipework Nozzle Specification form or the HVAC Nozzle form, as appropriate. You can also create new nozzles or electrical connections and delete existing ones using the buttons on this form. After making any changes, use the Refresh Lists button to update the form.

To change which 3D connection is linked to a particular schematic connection, select the schematic connection in the Schematic Equipment list, select the 3D connection in the 3D Equipment list, then select the Set Link button. The selected connections will be linked.
