Linkage Between Main Table and Diagram
If no diagram is currently displayed, the Main Table will list all instances of the Main Object Type that are available in the current MDB. When a diagram is displayed, the Main Table will list instances of the Main Object Type according to the current setting of Scope for Schematic Types.
When a diagram is displayed, objects selected in the Main Table are also automatically selected in the Diagram View, if included in the currently displayed diagram and vice versa.
Only objects listed in the currently displayed Main Table may be selected in the Diagram Viewer, e.g. if the main object type has been set to Schematic Equipment, only Schematic Equipment can be selected in the Viewer. Other objects such as Pipelines can be highlighted by hovering the mouse over them, but cannot be selected until the main object type is changed.
When a Schematic Multi-Cable (SCMCAB) is selected in the Diagram View, all its child Schematic Cables (SCCAB) will be selected in the Main Table. When an SCCAB that is a member of an SCMCAB is selected in the Main Table, its owning SCMCAB will be selected in the Diagram View. Its sibling SCCABs may be automatically selected in the Main Table via the right click option Select All Cables in Multi-Cable.

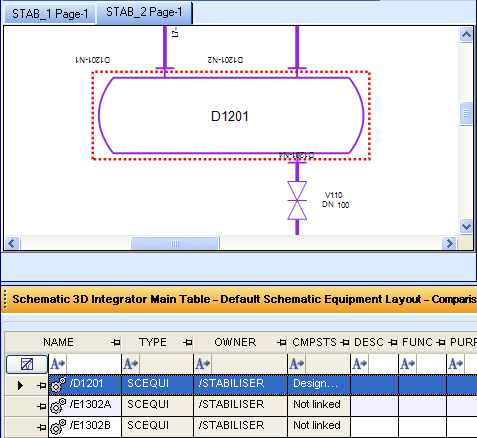

Figure 4:10.
Linked Selection in Table and Diagram Viewer
