Schematic 3D Integrator
User Guide
Integrator Controls : Main Table Options : Settings, Interaction Mode and Reset Cell Feedback

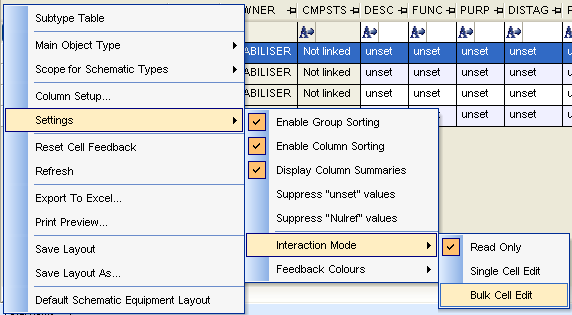

Select Main Table Menu > Settings to display the settings submenu. Select any of the settings to enable or disable that facility.
|
Figure 4:6.
|

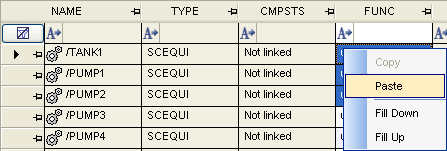

In Bulk Cell Edit, double clicking on a cell places that cell in edit mode. A single click on a cell selects the cell itself, and standard Windows selection methods (left mouse click plus Ctrl and Shift keys) select multiple groups of cells. A left mouse drag operation can also be used to select multiple cells. In Bulk Cell Edit, Fill Down, Fill Up and Copy/Paste operations apply to all cells currently selected.
|
Figure 4:7.
|
Read only cells are shown with grey background (or the selected colour if Feedback Colours have been changed). Cells may be read only for a variety of reasons, including data from a read only database, an object claimed by another user, or non-editable attributes such as Owner or Type. In Bulk Cell Edit mode, Name is read only. Following an edit, the results (success or failure) are displayed using cell colours and tooltips. These can be cleared by selecting Reset Cell Feedback.
