Schematic 3D Integrator
User Guide
Integrator Controls : Main Table Options : Subtype Table

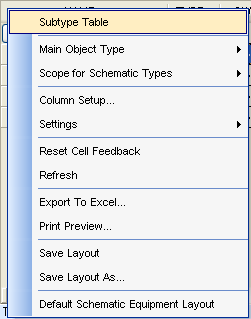

To display the Subtype table select Main Table Menu > Subtype Table. The subtype table displays objects owned by the selected object(s) in the main table, e.g. schematic nozzles in a schematic equipment, or components in a pipeline.
|
Figure 4:1.
|
