Schematic 3D Integrator User Guide
Getting Started : Integrator Messages
Integrator Messages

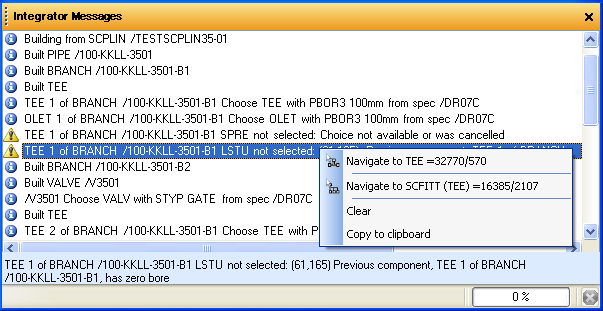

When running Build and Compare, the Integrator Messages Dialogue will be displayed. This will show progress, warning and error messages.
Figure 3:12.
Integrator Messages
Typical messages include warnings such as when Integrator is unable to select a component from a pipe spec.
Note:
If you see the message “Project Configuration Rules evaluation FAILED” for an SCFITT, SCVALV, SCINST or SCHVFI, check that it has a valid GTYP.
The dialogue right click menu provides options to navigate to relevant objects, and to copy the content of the dialogue to the clipboard (e.g. so that it can be included if required in support calls).
