Getting Started : Build a 3D Object

To create a 3D object from its corresponding schematic object.

Select a schematic equipment in the table or diagram view, then click the right hand mouse button and in the context sensitive menu select Build.

Hint: If the Build option is not activated, this may be because the schematic equipment has not been released for 3D in the schematic database. The releaseto3Dstatus attribute can be set in AVEVA Diagrams or Schematic Model Manager. If set via syntax use RESTAT 1.

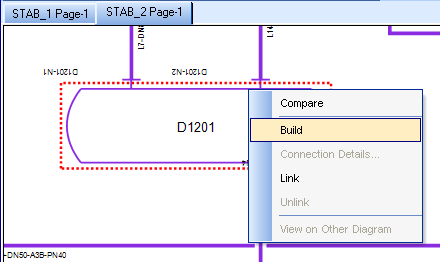

Figure 3:9.

Build Equipment

The new 3D equipment will be shown in the graphical view.

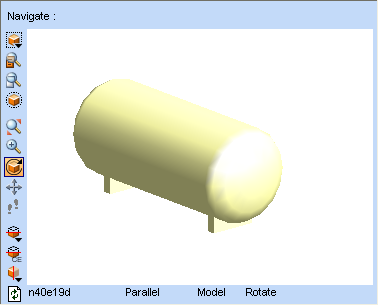

Figure 3:10.

Graphical View

Equipment built will be listed on the Equipment Details form. From this form you can change the equipment specification and position, and set connection details.

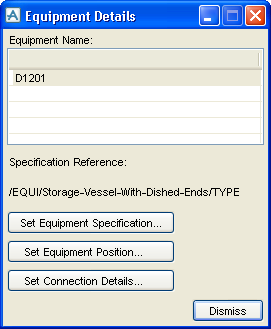

Figure 3:11.

Set Equipment Specification
