Schematic 3D Integrator User Guide
Getting Started : Compare a 2D and 3D Object
Compare a 2D and 3D Object
Integrator can compare 3D objects against their corresponding schematic objects and report any inconsistencies in connectivity or attributes according to easily configured rules.

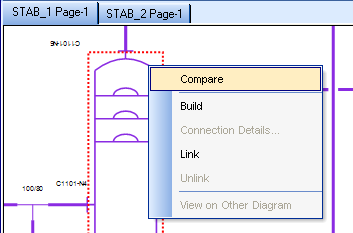

Select a schematic equipment again in the main table or diagram view. Click the right mouse button and in the context sensitive menu click on Compare.
Figure 3:6.
Compare Equipment

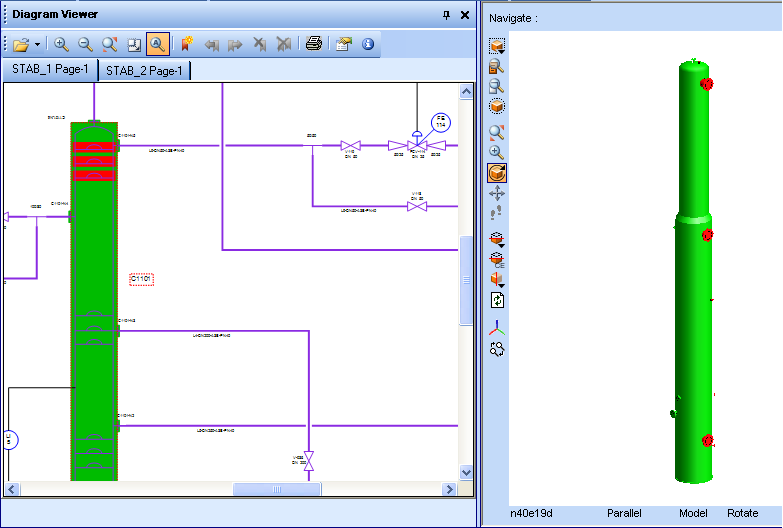

A comparison report will be displayed and the diagram and graphical views will be coloured to reflect the results of the compare.
Figure 3:7.
Comparison Results

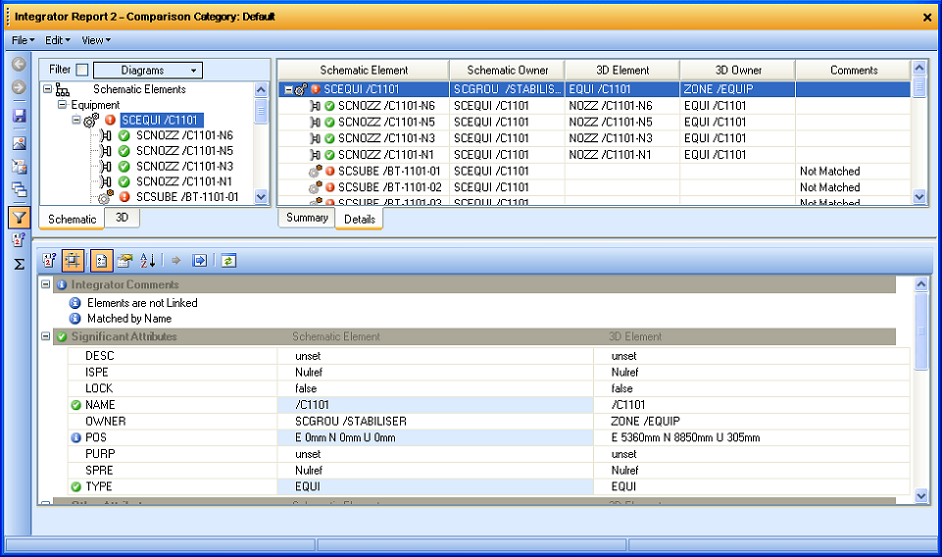

The Compare Report shows detailed results and marks any discrepancies. The report can be saved from the File menu or Save Button.
Figure 3:8.
Comparison Report
