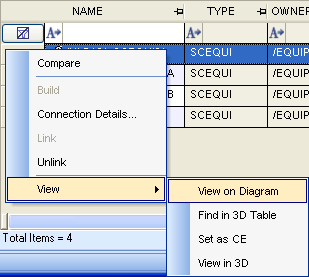

To select a schematic equipment, click the left mouse button in the left most table column. Click the right mouse button in the selected row, then select View > View on Diagram.

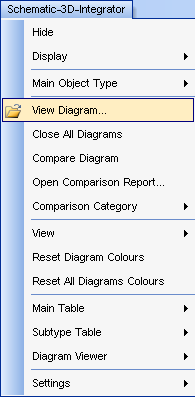

If you already know which diagram you want, you can open it directly from a list. From the Integrator main bar menu select View Diagram.

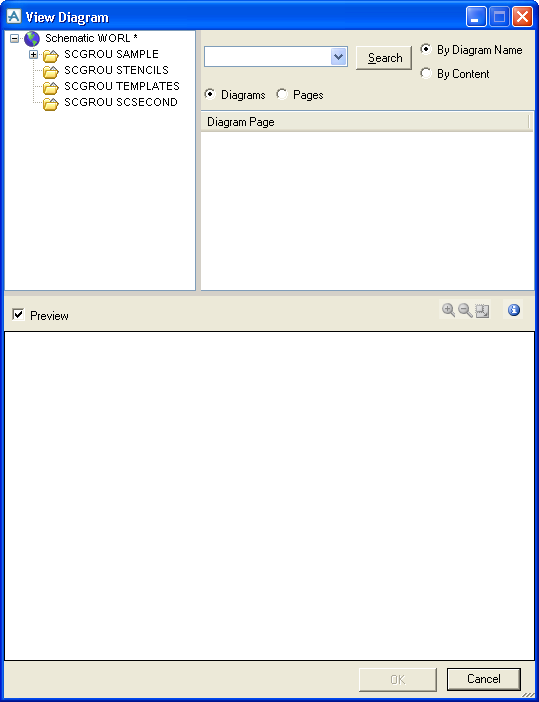

Click on the Search button with blank text in the Search For field to get a list of all diagrams available.

Select Diagram or Pages to see one entry per diagram or one entry per page.

Select By Diagram Name to perform a wildcard search using the name of the diagram. Select By Content to perform a search using the name of an object such as schematic equipment to find the diagrams it appears on.

Select the required diagram or page. If the Preview option was checked, and either a page was selected or a single page diagram was selected, then the diagram will be displayed in the Preview panel. Use the pan and zoom functions to inspect the diagram. Click OK to display the diagram in the Diagram Viewer.
