Clash Manager
User Guide
GUI
: Security Settings Form

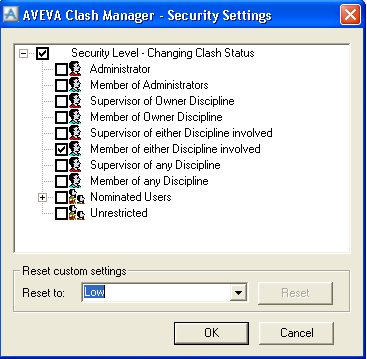

Security Settings Form
This form is accessed from the Security Tab of the Clash Manager - Configuration form. It enables the user to specify custom (user-defined) settings that can take the place of the pre-defined settings for a particular Security Level (see
Access Rights
).
The elements of the form and their purposes are:
Pane displaying
a tree of
checkboxes
Top check box labelled with the Security Level
To show which security level being customised. The check box is always checked.
Eight check boxes
labelled with
combinations of
member, supervisor
and discipline
These are initially populated as for the settings currently in use. The administrator can select (tick) and deselect (clear) the check boxes to reflect the customised minimum requirements for a user who is allowed to perform tasks at the particular Security Level.
Check box labelled
Nominated Users
This check box can be selected in addition to any selected above. When the check box is ticked, a branch of check boxes labelled with user names is displayed.
Ticking a check box in the branch, unconditionally allows the particular user to perform tasks at the particular Security Level.
Leaving a check box blank, bars the user from performing the tasks.
Bottom check box
labelled
Unrestricted
When this check box is checked, any user can perform tasks at the particular Security Level.
Reset Custom
Settings
Reset to:
For selecting the appropriate state, when the custom settings are to be reset to pre-defined settings.
Reset
For resetting the customised settings to the pre-defined settings for the State selected in the drop-down list.
OK
Saves any changes and closes the form
Cancel
Ignores any changes and closes the form
