Browse Model Form

Clash Manager User Guide

GUI : Popup Menus : Browse Model Form

Browse Model Form

This form is used to add items to the 'Obstruction', 'Check' and 'Exclude' lists on the 'Clash Set Data' form and also to add items to the Tracking Selection Rules on the GTYPE/Tracking tab of the Clash Manager Configuration form.

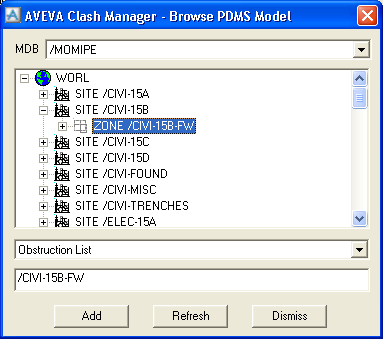

The form includes the following items:

For selection of the Mdb associated with the Tracking Selection Rules at the Clash Manager Configuration form. Otherwise read-only.

Pane displaying the
hierarchy

For selection of the item to be added

Note:

A DESIGN session must be active when a selection is being made.

For selection of Obstruction, Check or Exclude list at the 'Clash Set Data' form. Otherwise not used.

Un-named text box

Shows name of selected item. Direct entries can be made, if required.

To add the selected item to the form that called up this form

To update the displayed data

To close the form
