: Popup Menu
Popup Menu

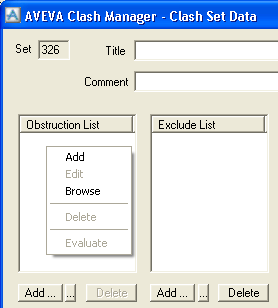

A popup menu is available from the
Obstruction List, Exclude List
and
Check List
panes by right-clicking the mouse.
The available options and their purposes are as follows:
Add
For adding items or expressions to the particular list. Leads to the relevant 'Add List Item' form.
Edit
For editing expressions. Leads to the relevant 'Edit List Item' form.
Browse
For adding elements derived from the hierarchy. Leads to the 'Browse PDMS Model' form
Delete
Deletes the selected item from the list. (The item is not deleted from the PDMS model.)
Evaluate
For viewing the overall list when its wildcards are expanded. Leads to the 'Evaluate' form, which displays a consolidated listing of the results of querying the model and expanding the expressions in the particular list.
Note:
Double-clicking an item in the any of the lists leads to the 'Browse PDMS Model' form if the item is an element name, or leads to the 'Edit List Item' form if the item is an expression or simply a GTYPE.
