Clash Manager User Guide
GUI : Popup Menus : Clash Sets Form
Clash Sets Form
This form is used to compile a list of all clash sets. It provides the content of the sub-menu displayed by the selection of Run Clash Sets at the Tools drop-down menu.

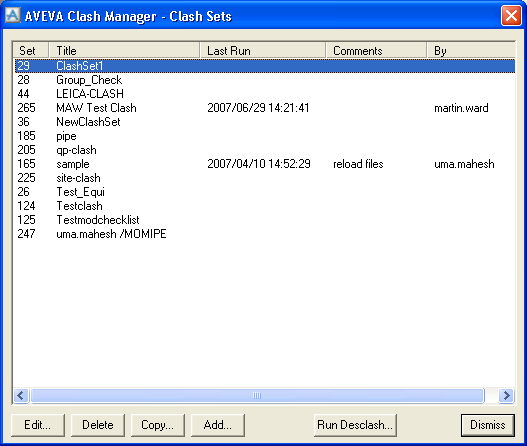

The main area of the form is occupied by a text box that lists current details of all clash sets.
A Details button available to users (members/supervisors of all disciplines) leads to the 'Clash Manager - Clash Set Data' form.
The following buttons are available to the Supervisor of the Administrator discipline:
Add
Used for creation of a new clash set. Leads to the 'Clash Manager - Clash Set Data' form, pre-populated either with the 'Default' clash set, or with default settings derived from environment variables.
Delete
Deletes the highlighted clash set.
Copy
Creates a copy of the highlighted clash set, but with a new set number.
Edit
Used to modify details of the highlighted clash set. Leads to the 'Clash Manager - Clash Set Data' form, pre-populated with details of the clash set.
Run Desclash
Initiates clash checking for the highlighted clash set. Leads to the 'Run Clash Set' form.
Dismiss
Closes the form.
In addition to those buttons the following options are available on the popup menu. Right click to display the options.
Revert Clash Run
Displays details of the previous clash run.
Display Counts
When this option is checked, the number of clashes generated will be displayed on the Clash Sets form.
Display User Sets
When this option is checked, Clash Sets generated by users checking the CE are displayed on the Clash Sets form.
Refresh
Refreshes the form contents.
