Hangers : Create a Hanger

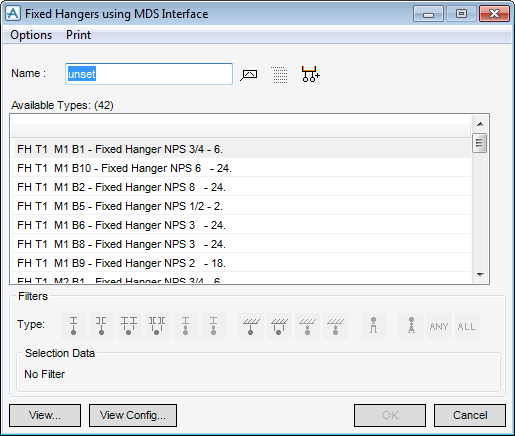

To create a fixed hanger, on the Supports tab, in the Create group, click Fixed Hangers to display the Fixed Hangers using MDS Interface window which displays all the available hanger configurations that can be created.
|
•
|
|
1.
|
Enter the name of the hanger to be created. The user can also select the AutoName icon
 to name the support. Refer to the MDS Administrator Guide for further information. |
|
2.
|
Click on OK. The window becomes active.
|
|
4.
|
Click on OK.
|
Since the list of hanger types contains all the hangers available, regardless of the pipe size, the pipe insulation, and the type of the steelwork connection, the user may find that the hanger type selected is not suitable for the pipe to support or is not suitable for an insulated pipe. Avoid this situation by using the filters at the bottom of the window This is described in Using the Filters.
