Isometric Material List Control
Isometric Material List Control
The user can exclude selected items from the Isometric Material List. For example:
•
Individual ancillaries (including the DATUM atta)
•
Ancillaries on other branches belonging to the support
•
The support frame itself
To access the Isometric Material List Control facility:
1.

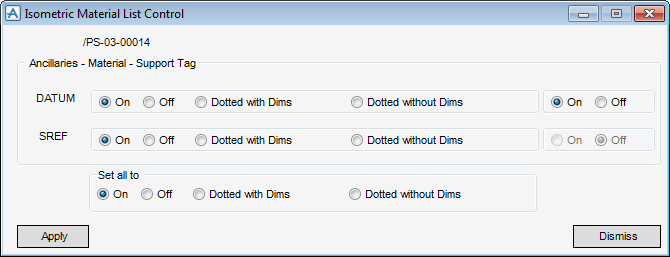

Click on the Isometric Control icon from any of the support forms. The Isometric Material List Control window (Figure 10:1.: Isometric Material List Control window) is displayed.
Figure 10:1.
Isometric Material List Control window
2.
Set the Ancillaries to On or Off as required.
Note:
The user can also exclude the support frame from a piping branch Isometric Material List by setting the SREF ancillary to Off.
3.
Optionally, the user can exclude ancillaries or the support frame and either draw them dotted and dimensioned, or draw them dotted and non-dimensioned.
