Multi-Discipline Supports Administrator Guide
MDS Hanger Data Form : Bottom Associated Support Standards Tab
Bottom Associated Support Standards Tab

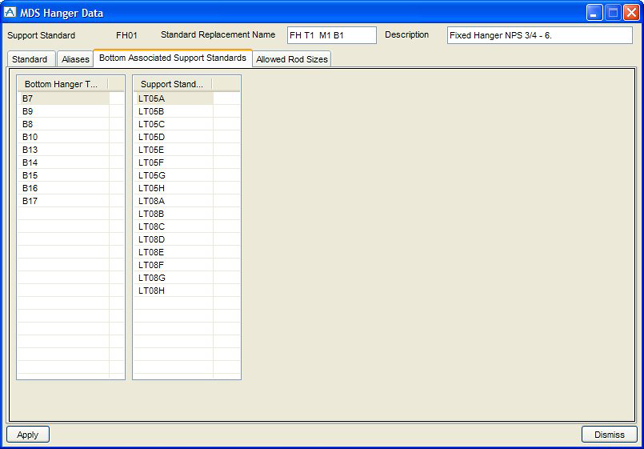

Figure 6:3.
MDS Hanger Data - Bottom Associated Support Standards Tab
Where the hanger is supporting a pipe through a lug, ancillary or trunnion, this tab defines which standard supports can be used for that support.
Click on a component in the Bottom Hanger Types column. Listed in the Support Standards column are the MDS standard types it may be associated with.
These associations can only be changed using the Command Line Interface.
