Multi-Discipline Supports Administrator Guide
Modifying User Defined Ancillary Geometry : Point Sets
Point Sets
These have been created with the minimum points required by MDS. These are:
P-Point
Description
1
Arrive Point
2
Leave Point
3
Bottom of Pipe (BOP) -5mm, i.e. bottom of the ancillary geometry -5mm
9
BOP (Including geometry if required), i.e. bottom of the ancillary geometry
10
Left of Pipe
11
Right of Pipe
12
BOP

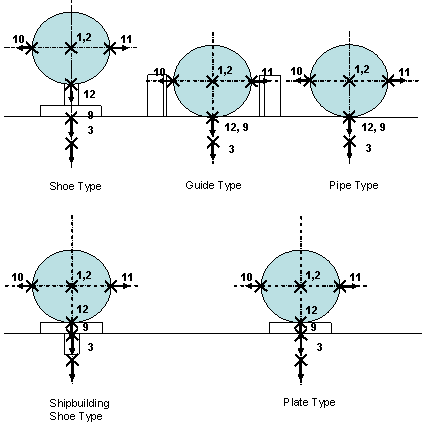

The diagram below shows the position and directions of the p-points, P1 and P2 are arriving and leave points along the centreline of the pipe.
Note:
The MDS default p-points provided cannot be deleted or modified, but additional p-points can be created if required.
