LEXICON User Guide
User Defined Element Types : Create a UDET : Select Hidden Attributes
Select Hidden Attributes
To display the Select Hidden Type window click the icon in the Hidden Attributes field of a UDET in the Current Element Editor.
When a UDET has been assigned a Base Type it will automatically inherit all of the system attributes of that base type.

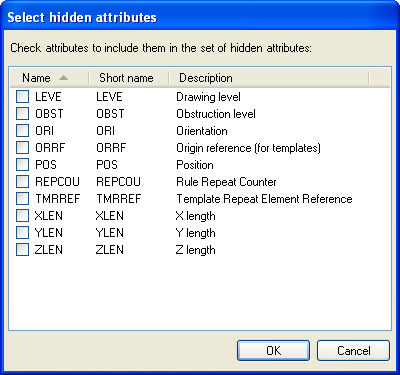

The Select Hidden Attributes window allows the system administrator to select which attributes are to be hidden when using the UDET.
To hide an attribute check the relevant check box to the left of the attribute which you do not want to be visible when using the UDET.
Click OK to close the window and return the values to the appropriate field in the Current Element Editor or Cancel to discard any inputs.
