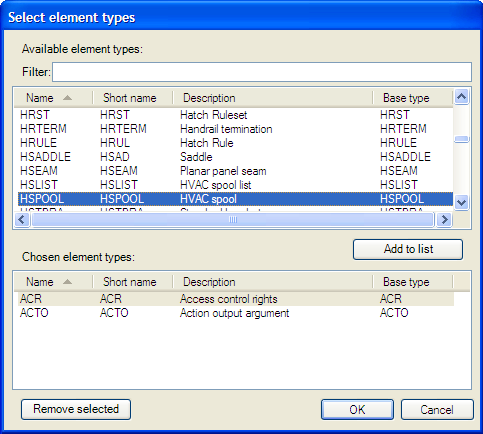

To display the Select element type window, click the icon in the Element types field of a UDA in the Current Element Editor.

The Select element types window allows the system administrator to select from the list all available element types.

To filter the list enter a text value in the Filter field. The list will refresh to display all element types that contain all or part of the text value entered in the Filter field.

To choose an element type from the Available element types: pane of the Select element types window, click an entry to highlight the required element, click Add to list.

The element types are automatically displayed in the Chosen element types: pane of the Select element types window. To remove an element type, click to highlight the required element, click Remove selected.

Click OK to close the window and pass the selected element types back to the Current Element Editor or Cancel to discard any inputs.
