MEI Export

Equipment User Guide

Equipment : Mechanical Equipment Interface : Export Model : MEI Export

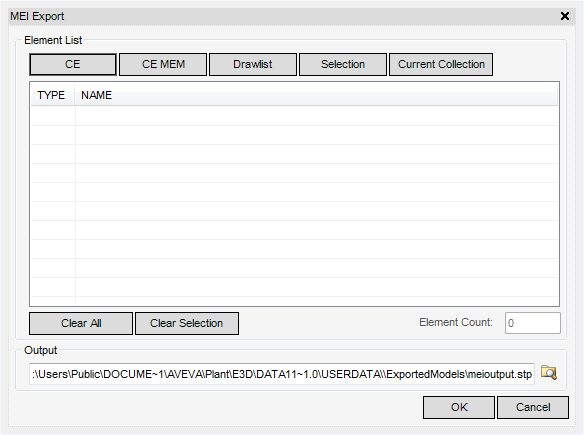

To export a model via the GUI, on the Equipment tab, in the Export group, click MEI to display the MEI Export window.


CE	Adds the element selected in the Design Explorer.
CE MEM	Adds the element selected in the Design Explorer including all the elements members.
Drawlist	Adds all the elements currently included in the Drawlist.
Selection	Adds the element(s) selected in the graphical view.
Current Collection	Adds all the elements in an existing named Collection.
Clear All	Clears all the elements from the Element List.
Clear Selection	Clears the selected element(s) from the Element List.
Element Count	Displays a total number of the elements in the Element List.

The Output field displays the location the exported files is saved to. The path can be changed by clicking the icon to the right of the field to display the Select File window. Navigate to the required location and then name the file in the File name: field.

Click OK to export the file or Cancel to stop the export and close the MEI Export window.
