DRAW Reference Manual
Colours and Styles : Fill Styles : System-Defined Fill Styles
System-Defined Fill Styles

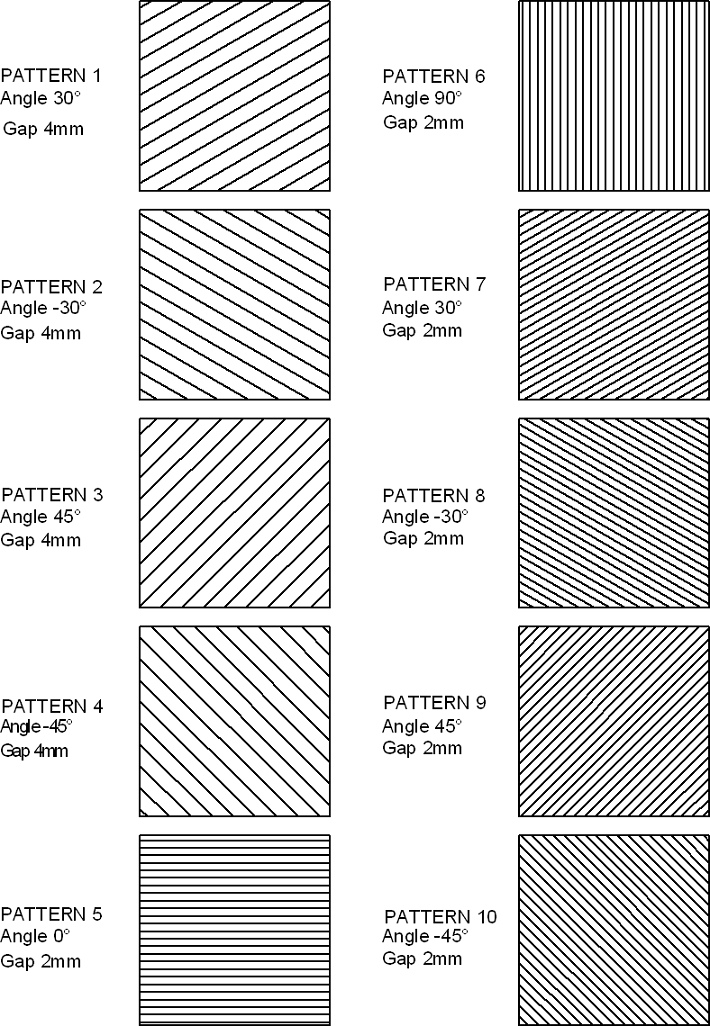

Thirty system-defined fill styles plus a solid-fill capability are provided. System styles 1 to 10 are defined by a single hatch pattern, and is illustrated (within square RECT primitives) in Figure 8:4.: System Patterns 1-10. These provide two separations (2mm and 4mm) and six angles (30, -30, 45, -45, 0, 90 deg).
Figure 8:4.
System Patterns 1-10
Patterns 11-18 are combinations or variants of system patterns 1-10, and are defined as:
Pattern 11:
45 deg, cross-hatching, 4mm separation
Pattern 12:
45 deg, cross-hatching, 2mm separation
Pattern 13:
90 deg, cross-hatching, 2mm separation
Pattern 14:
30 deg, double-line hatching, 4mm separation
Pattern 15:
45 deg, double-line hatching, 4mm separation
Pattern 16:
30 deg, single-line hatching, 1mm separation
Pattern 17:
45 deg, single-line hatching, 1mm separation
Pattern 18:
-45 deg, single-line hatching, 6mm separation

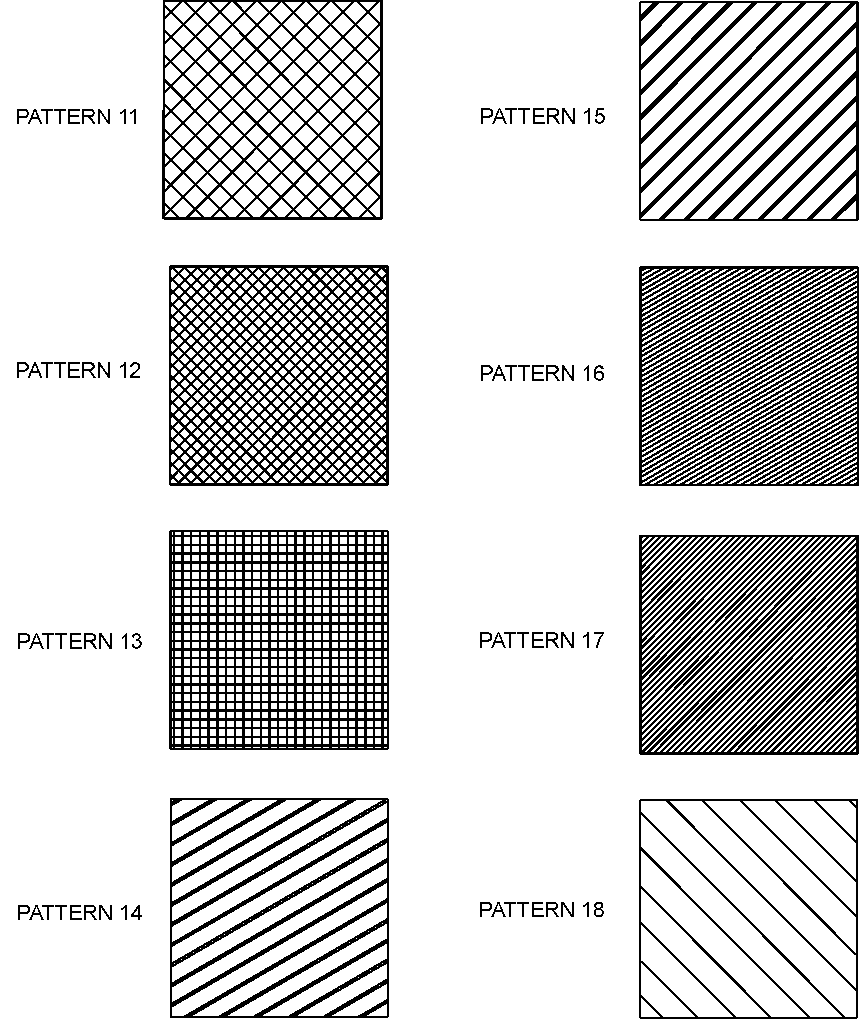

Patterns 11-18 are illustrated in Figure 8:5.: System Patterns 11-18.
Figure 8:5.
System Patterns 11-18
Patterns 19-30 are more complicated patterns making use of differing linestyles.
Pattern 19:
45deg, Short-Dashed/Solid 2.5mm separation
Pattern 20:
45deg, Chained/Solid 2.5mm separation
Pattern 21:
45deg, Chained 2.5mm separation (with cumulative offset)
Pattern 22:
Horizontal, dashed, 4.5mm separation (with cumulative offset)
Pattern 23:
Crosses (horiz/vert lines)
Pattern 24:
Crosses (diagonal lines)
Pattern 25:
Squares
Pattern 26:
Triangles
Pattern 27:
Grassland
Pattern 28:
Swamp
Pattern 29:
Brickwork
Pattern 30:
Concrete

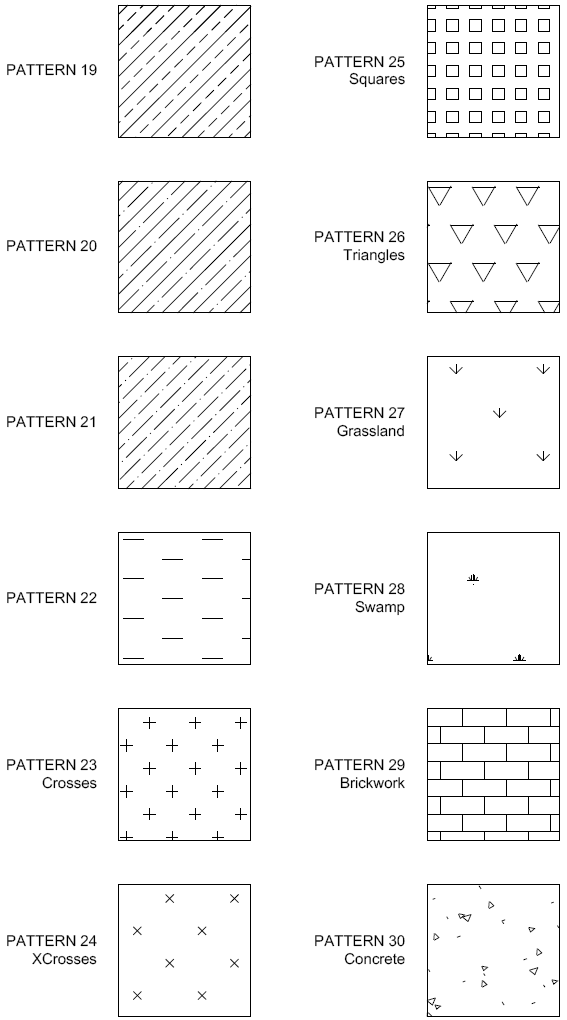

Patterns 19-30 are illustrated in Figure 8:6.: System Patterns 19-30.
Figure 8:6.
System Patterns 19-30
