DRAW Reference Manual
ISODRAFT Symbols
You can create symbols in DRAW to be used on the isometrics produced by ISODRAFT. The symbols are created as ISODRAFT Symbol Templates (ISOTMs), which are similar to normal symbol templates, except that they can only own STRAs and MRKPs. They have additional attributes, refer to Creating ISODRAFT Symbol Templates for further information.

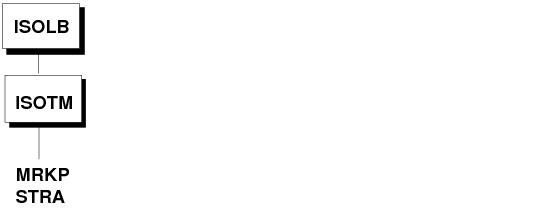

ISOTMs are stored in ISODRAFT Symbol Libraries (ISOLBs), which are identical to SYLBs except that they can only own ISOTMs. The relevant part of the DRAW database is shown in Figure 18:1.: ISODRAFT Symbol Libraries and Related Elements.
|
Figure 18:1.
|
