Rotation Handle

The following options are available on the Rotate Handle before a drag:


Enter Value	Displays the Rotate About X, Y or Z window which allows the user to specify an angle through which to rotate the Rotation Handle. Clicking Preview allows the user to see the proposed change in the graphical view. Click OK to accept the rotation or Cancel to close the window without rotating the element.
Orient to Point	Allows the user to pick a p-line through a point with which to orient the Rotation Handle.
Align with Direction	Allows the user to identify features with which the handle is to be aligned.
Align with		Displays the Enter Direction For Z Axis window which allows the user to align the handle with a specified direction, or as close as possible to the given direction, about the axis of the pipe. Clicking Preview allows the user to see the proposed change in the graphical view. Click OK to accept the change or Cancel to close the window without changing the element.
Move Handle >	Arrive of Selection	Allows the user to move the Rotation Handle origin to the Arrive of the current selection.
	Leave of Selection	Allows the user to move the Rotation Handle origin to the Leave of the current selection.
Cancel	Returns the handle back to its original state before the drag

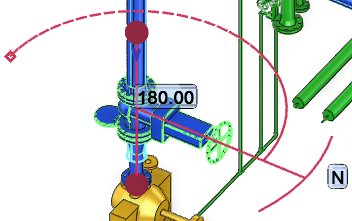

On Completion of a Drag

The following options are available on the Rotation Handle on completion of a drag.

Clicking Rotate, rotates the selection and the handle to the shown position. clicking Cancel, returns the selection and the handle to their original state before the drag.
