Common Functionality User Guide

Model Editor : Drag Image

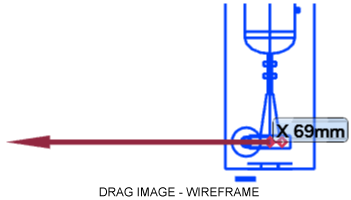

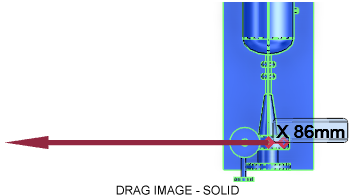

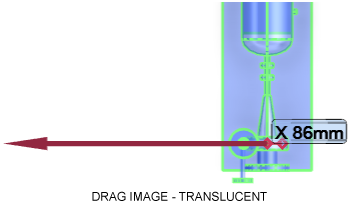

During a drag operation using the Locator Handle, an image of the Graphical Selection follows a constrained path defined by the current mouse pointer position. The user can change the appearance of the item when it is being dragged by, on the 3D View tab, in the Model Editor group, clicking Drag Image and selecting either Solid, Translucent or Wireframe from the list. With large Graphical Selections, the Translucent or Wireline options enables slightly quicker drag operations than the Solid style.
