Increments

Common Functionality User Guide

Model Editor : Increments

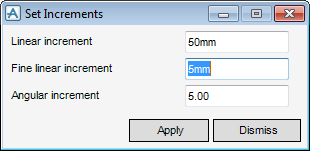

Set Increments sets the active linear, planar or rotation increments used when dragging an item. On the 3D View tab, in the Model Editor group, click Increments to display the Set Increments window.


Linear increment	Linear increment controls the step size used when dragging a Graphical Selection using a linear or planar handle. The default setting is 50mm.

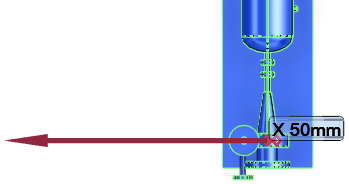

	With the value set at 50mm the element will move in steps of 50mm.
Fine linear increment	Fine linear increment has the same function as the linear increment, but with a default step size in 5mm. Fine linear increments are achieved by using the 2 and 8 numeric keypad keys or the arrow keys with the mouse button held down.

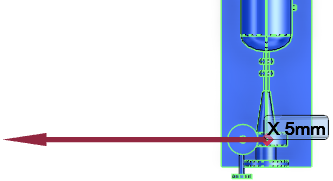

	With the value set at 5mm the element will move in steps of 5mm.
Angular increment	Angular increment controls the angular step size used when dragging a Graphical Selection using a rotation handle. The default setting is 5.00.

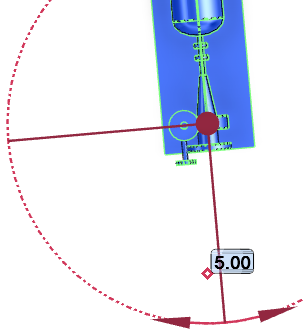

	With the value set at 5.00 the element will rotate in steps of 5 degrees.
