The model file created when the user runs an export template contains only the geometric data needed for Review to display a 3D visualisation of the design. The Export utility allows the user to create a data file containing the settings of all the attributes of specified design elements and is structured to reflect the original database hierarchy. A visualisation program, can then be used, to query any design data details without having direct online access to the databases.

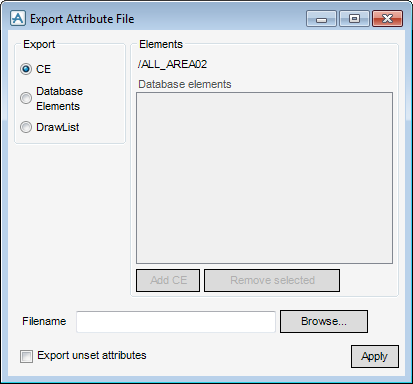

To create a full attribute file for use by Review, on the Tools tabs, in the Export group, click Review, select Dump Attributes from the drop-down list to display the Export Attribute File window.
|
Activates the Database elements list. The user can navigate to required elements in the Model Explorer and click Add CE to add the element to the list. The user can repeat this until all the required elements are in the list. Highlighting an element in the list and click Remove selected removes the element from the list.
|
|
The user can choose to export unset attributes, select Export unset attributes check box.

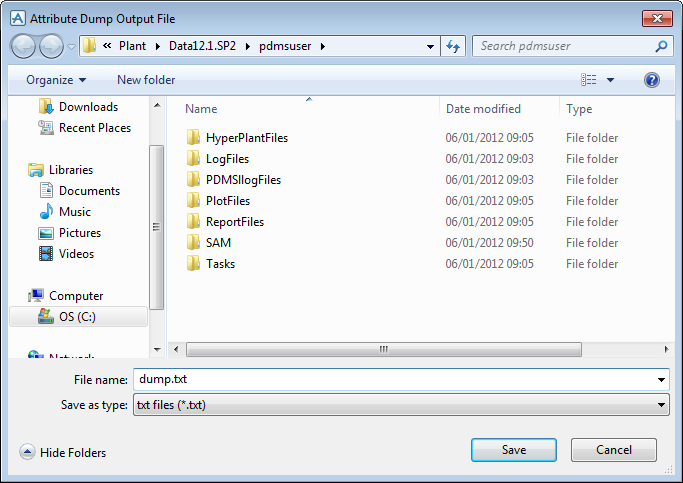

When the user has selected all the required elements to be exported they must designate a name and path for the exported file. To do this, either enter a name in the Filename field or click Browse to open the Attribute Dump Output File window which allows the user to navigate to the required location and name the file.
